每小时原矿200-300吨处理量淘金设备清单

淘金设备

砂金机械,选金矿机械,砂金选矿提取设备,砂金选矿机械

砂金设备每小时原矿200-300吨处理量淘金设备清单

6mm以下处理量：80-100T/H

回收率:明金、单晶体金90%以上

Raw material capactiy 200-300tph gold separating plant

Material size below 6mm capacity:80-100tph

Recovery over 90% to visible and single crystal gold

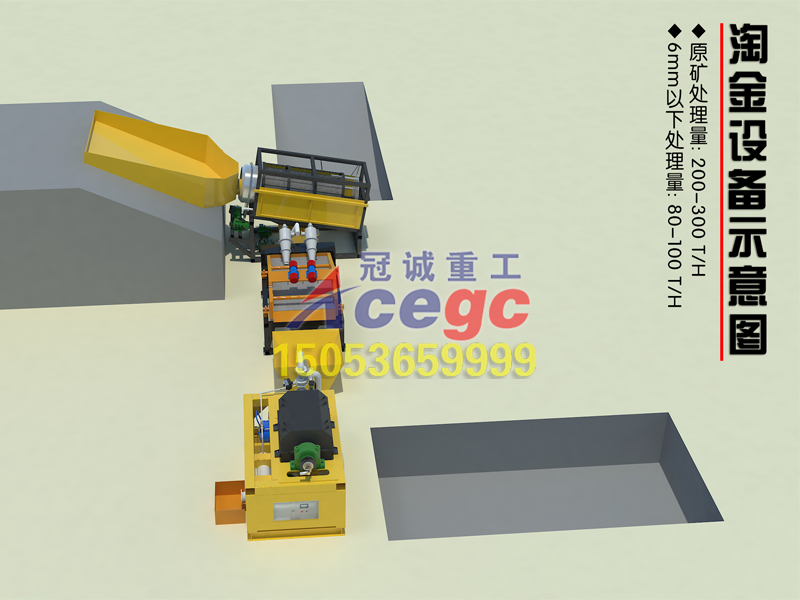

【选砂金机械流程概述】

原料通过工程车辆送入振动料仓，通过底部振动给料机均匀给入上料输送机，然后进入多铰刀绞洗筛内进行筛选分级为：粗料与细料两种规格，其中粗料排入一条固定式淘金毡溜槽内进行收尾，废料排入废料池中；

细料排入料箱内通过一台4寸沙泵打入一台1200#砂金机械卧式全自动排矿离心机内进行精选，精选出的精料自动排入精料箱内，废料排入废料池中。

Technical process

Raw material from excavator into vibrating feed hopper then well-distributed transported by conveyor to reamers trommel screen to be classified into big size＞6mm and small size≤6mm,the one in size＞6mm into fixed sluice to get the gold,the scrap into scrap material;

The small getting into 1set 1200#horizontal gold concentrator from 1set 4inch sand pump,the concentrate into concentrate box,the scrap into scrap pool.

【选砂金机械技术参数】
Detail parameter

名称 Production	规格 Specification	数量 Quantity	功率 Power	单价 Unit price	总价 Total price	备注 Remark
振动料仓 Vibrating feed hopper	2200*3000	1套	0.38			含振动给料机 Including shaking feeder
上料输送机 Transport conveyor	皮带宽度600mm，杆长约9米 Belt width600mm,pole length about 9m	1套	5.5
砂金机械滚筒筛 Reamer trommel screen	内径1.3米，外径1.6米，净筛网长度3米，内含多条铰刀从头部覆盖至尾部，链条驱动 Inner dia.:1.3m,outer dia.:1.6m, Screen mesh 3m,including reamers,driven by chain	1套	7.5
砂金机械固定溜槽 Fixed sluice with carpet	1000*4000	1套	-			含收金草，品牌：日本三菱 Including gold carpet,brand Mitsubishi
料箱&沙泵 Mineral box and sand pump	4寸沙泵 4inch sand pump	1套	11
砂金设备离心机 Gold concentrator	1200#卧式全自动排矿 Horizontal automatic discharge	1套	21.5			PLC电脑全自动控制 Plc control automatic discharge
离心泵 Centrifugal pump	5.5KW	1套	5.5
潜水泵 Submerged pump	5.5KW	1台	5.5
配电箱 Electric box		1套	-
总功率 Total power	56.88KW
