下挖25米工作量100-150立方每小时淘金船

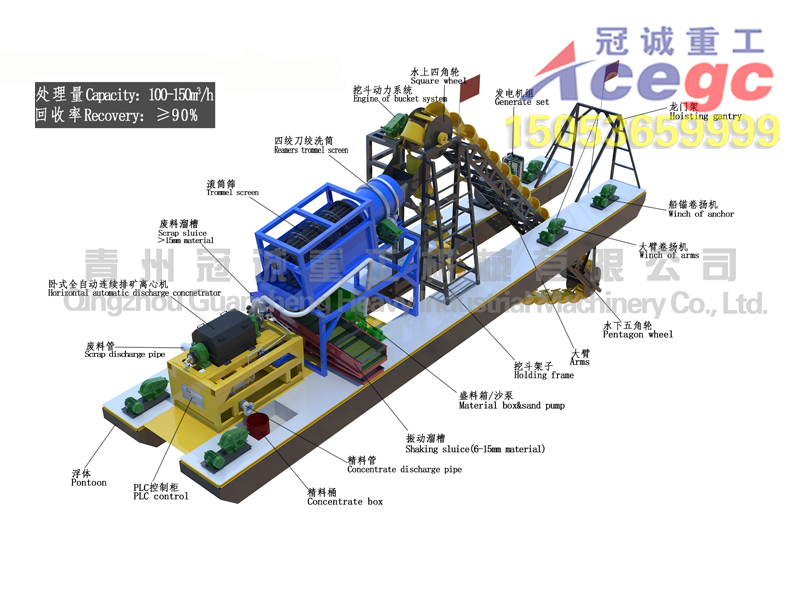

流程概述 ：

原料通过挖斗进入四绞刀绞洗筒进行绞洗脱泥，然后进入滚筒筛内进行筛选分级为：<6mm细料、6-15mm粗料、15mm以上废料三个级别，其中15mm以上废料直接通过废料溜槽排出至废料区域；

6-15mm粗料进入一台振动溜槽进行回收后，废料排出至废料区域；

<6mm细料排入盛料箱中，通过沙泵进入一台卧式全自动连续排矿离心机内进行精选，精料排入精料筒内，废料由废料管排出。

The material from the bucket shipped into the trommel screen fixed with 4 reamers which can ream and wash the clay off,then to be separating into 3sizes <6mm,6-15mm＞15mm,the biggest size useless are directly discharged to waste area by scrap sluice;

6-15mm material into shaking chute for recycling, scrap material discharged into the waste area;

The small size material <6mm gettinginto the material box through sand pump feeding into a horizontal automaticdischarge gold concentrator,then concentrateget into concentrator box, scrap material to be get rid.
