移动式振动料仓离心选矿车

【砂金机械流程概述】

原料通过工程机械送入砂金设备振动料仓，首先筛选出较大不合格的物料，减少砂金设备滚筒筛磨损，提高工作效率，合格的物料通过料斗下部的振动给料机由上料输送机均匀送入绞洗式滚筒筛内进行筛选分级为：粗料与细料两种规格。其中粗料通过沙金选矿设备、沙金提取设备一条固定式淘金毡溜槽进行回收后，废料排入废料区域；

细料排入料箱内通过一台沙泵打入砂金干选设备,沙金提取设备卧式全自动排矿离心机内进行精选，精选后的精料会自动排出至料箱内，废料排出至废料区域。

Technical process

The mineral mixture getting into vibrating feed hopper by excavator,firstly to get rid the useless minerals in very big size,it makes the machine more efficently and can redcue the abrasion,then the mineral getting into shaking feeder under vibrating feeder,transporting by conveyor to reamers trommel screen to be classified to be:big size and small size.The mineral in big size recovering by fixed sluice to collet the gold,the scrap are getting rid;the mineral in small size are sending to horizontal auto discharge concentrator by sand pump to get gold concentrate and the scrap finally are getting ride to scrap area.

【砂金机械技术参数】

Detail parameter

最大外型尺寸(含牵引杆)约：13*6.5*5.2米

The Max outlet size(including driving bar):13*6.5*5.2m

底盘长度约：11米，25#工字钢

Length of base plate:11m,made of 25double T steel

轮胎：900-2#， 4轴16胎

Tyre：900-2#,4axles16tyres

机械支撑腿：6条

Mechanical holding frames:6pcs

振动料仓：长2米，宽度3米，偏心轴电机5.5KW，振动给料机电机：0.55KW

Vibrating feed hopper:Length 2m,width:3m,eccentric shaft motor5.5kw,Motor of shaking feeder:0.55kw

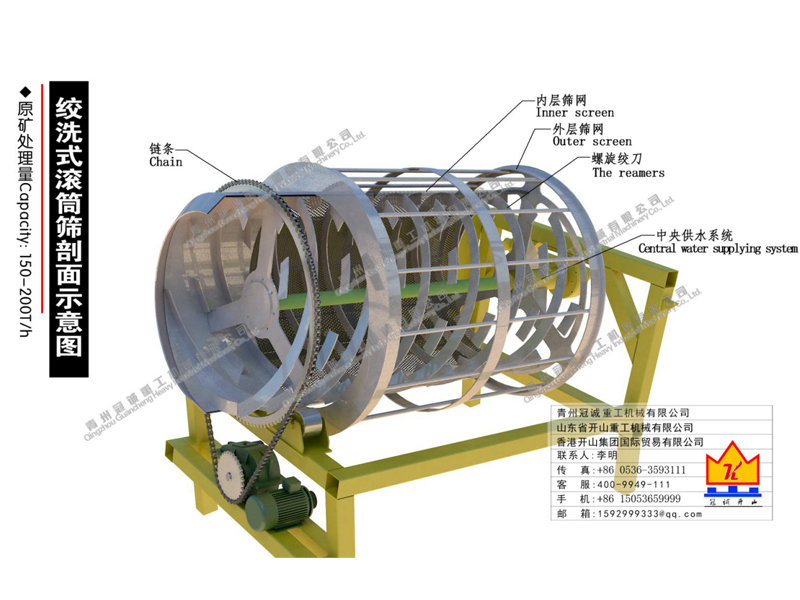

滚筒筛：内径1.3米，外径1.6米，净筛网长度1.8米，绞洗长度2.5米，中央供水系统，电机7.5KW

Trommel screen:inner diameter 1.3m,outer diameter1.6m,screen mesh 1.8m,reamer trommel 2.5m,the central water supplying system,motor 7.5kw

上料输送机：皮带宽度0.6米，杆长约2.8米 电机：电动滚筒2.2KW

Feeding conveyor:belt width 0.6m,pole length2.8m,Motor:elctric roller 2.2kw

沙泵：4寸，电机15KW

Sand pump:4inch,motor 15kw

料仓容积：约2-5立方

Volume of vibrating feed hopper:about 2-5CBM

淘金毡溜槽：1*4米

Fixe gold sluice with carpet:1*4m
